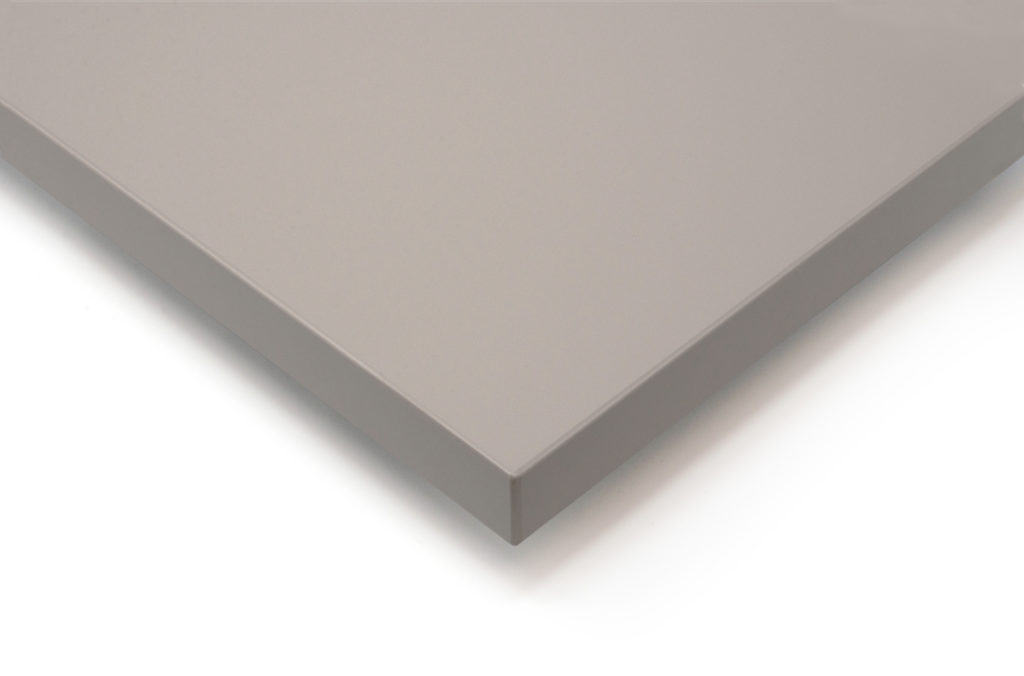

SUPER MATTE PANELS
CORE OPTIONS
TSCA Title VI certified, Glue line: Phenolic (Exterior, NO Urea Formaldehyde)
MDF
AVAILABLE SIZES: 49" x 97" and 49" x 121"

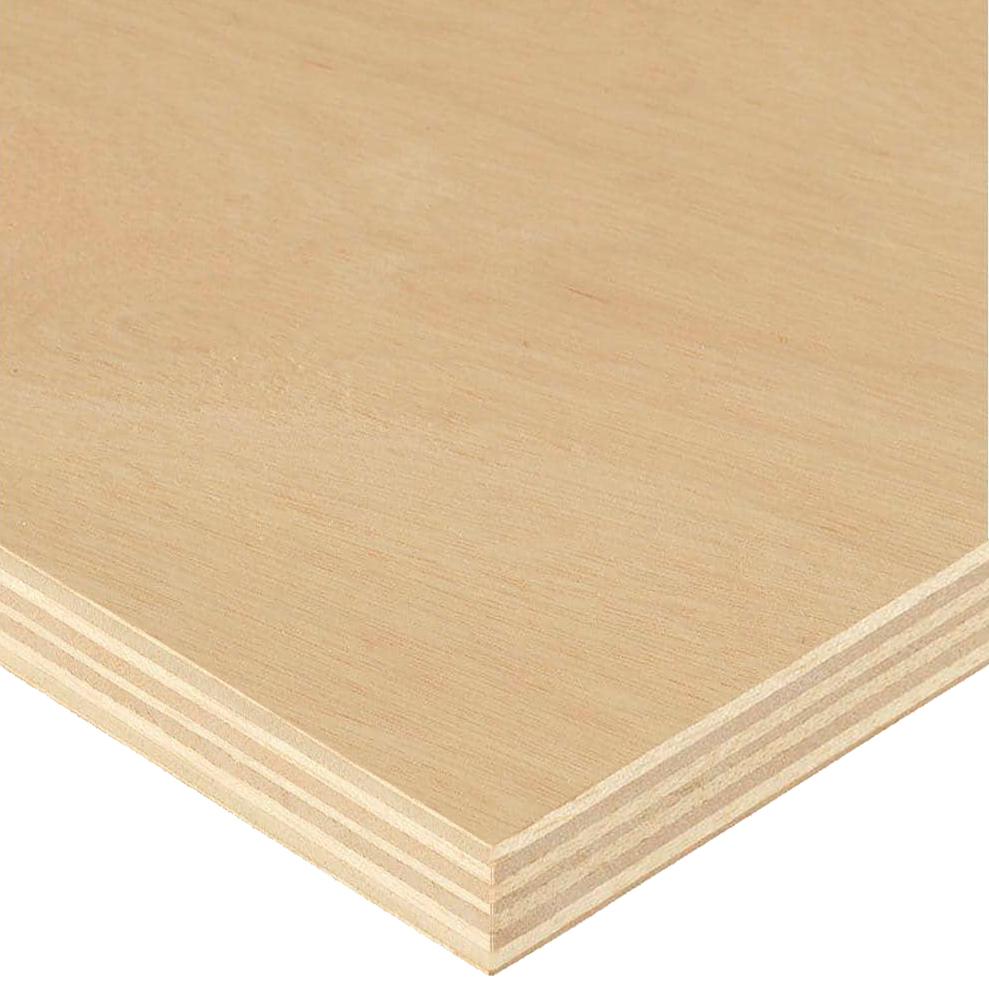

Plywood
AVAILABLE SIZE: 48.5" x 96.5" Long Grain
Particleboard
AVAILABLE SIZES: 49" x 97" and 49" x 121"

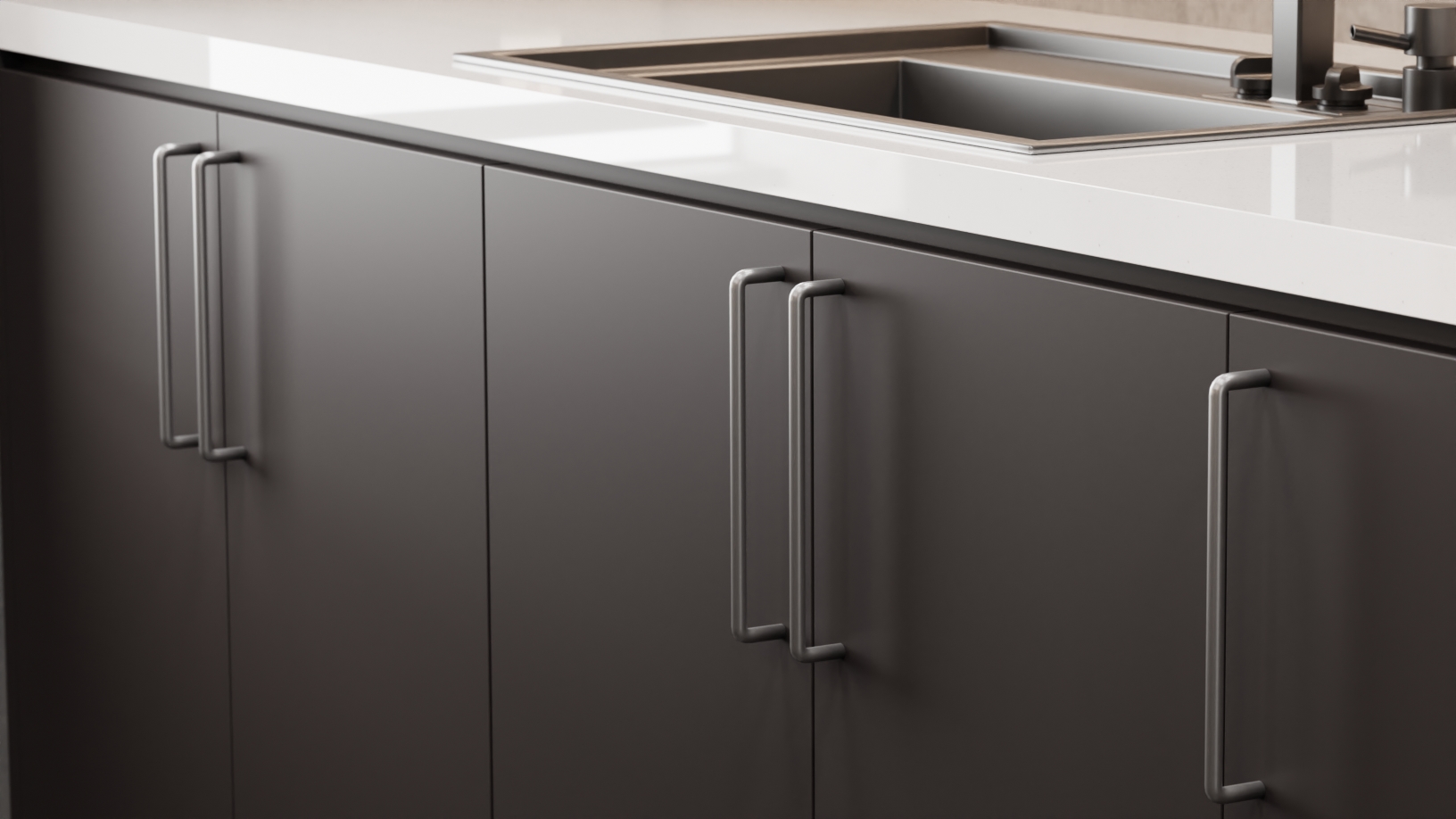

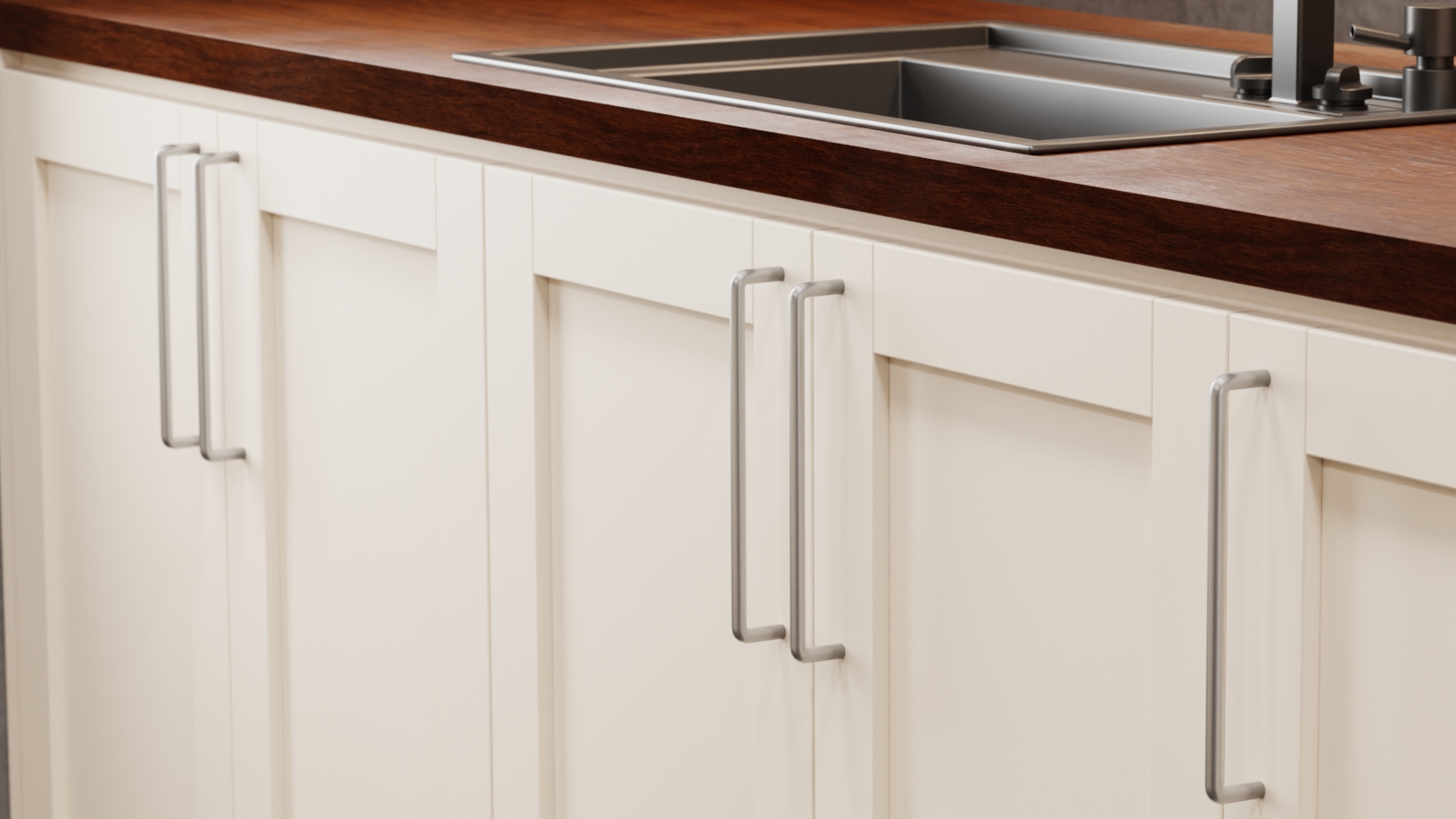

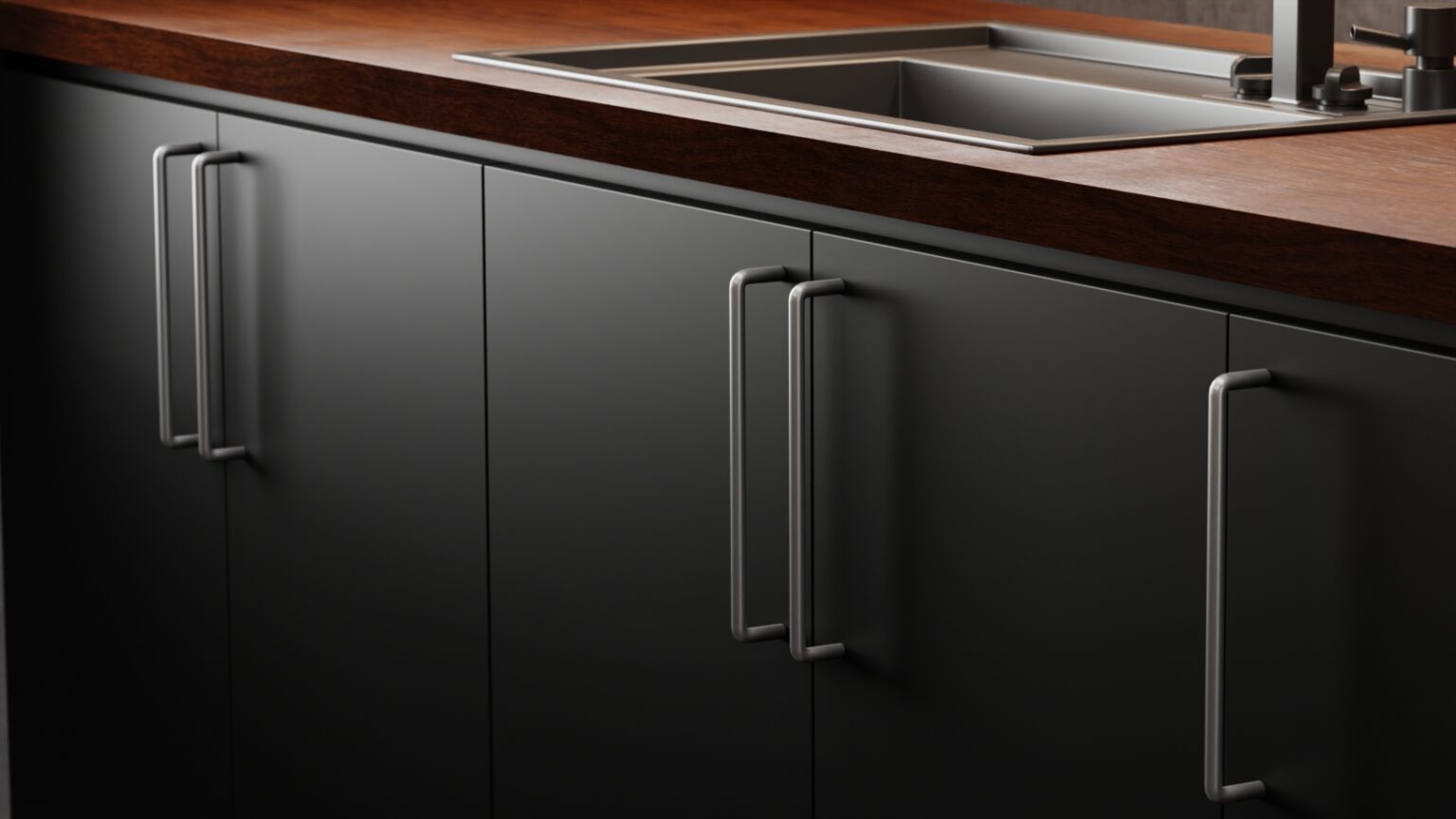

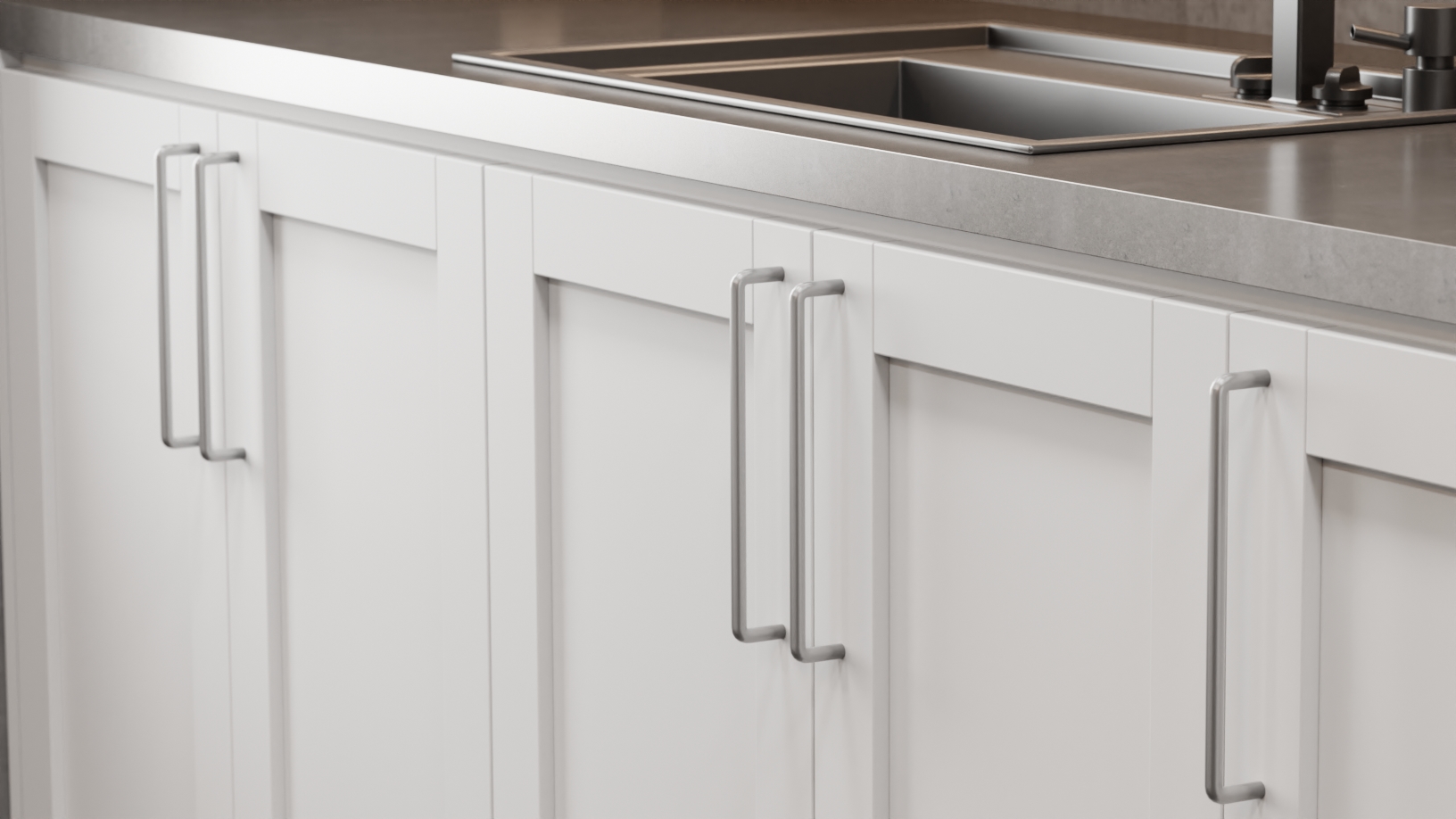

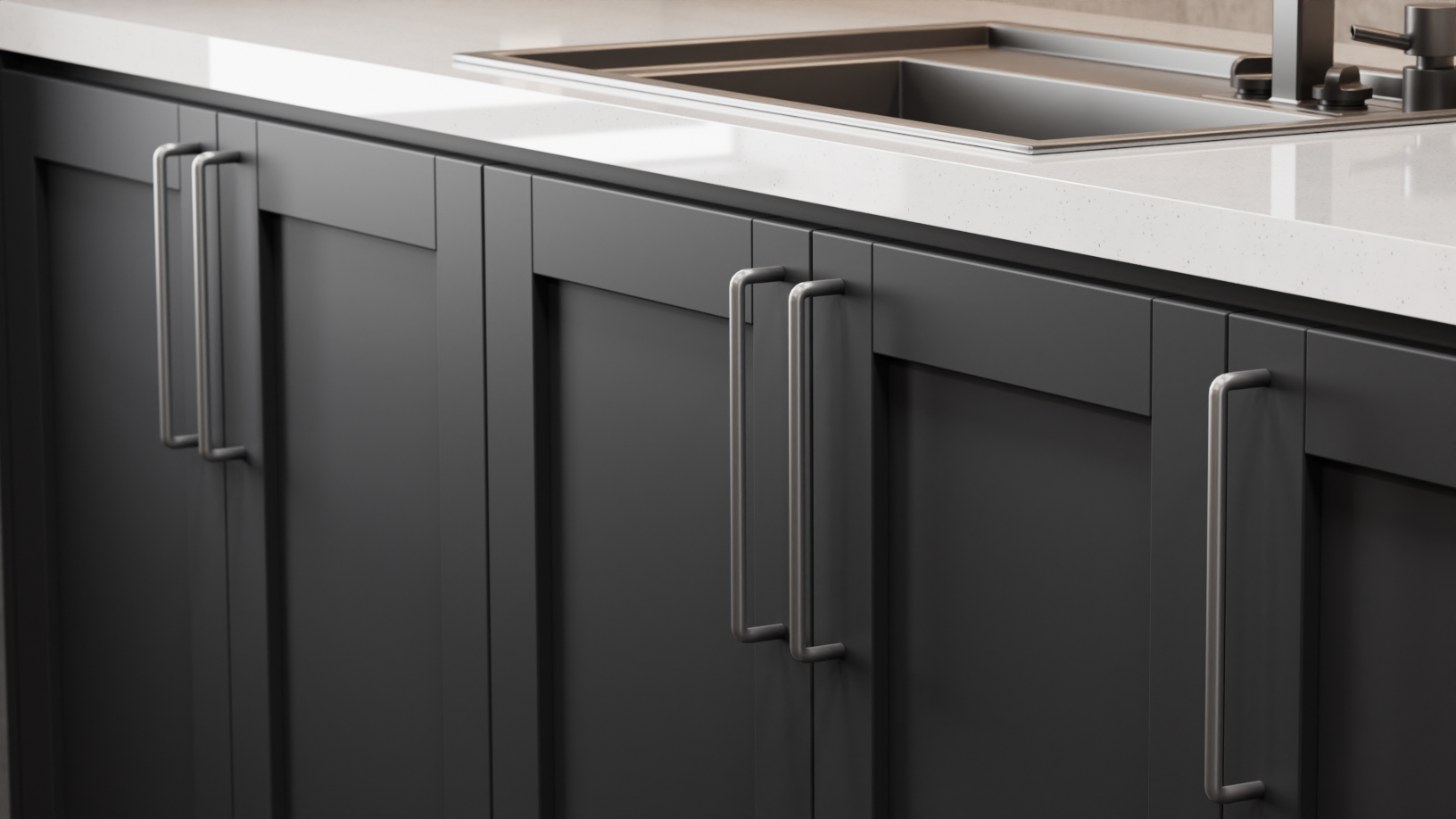

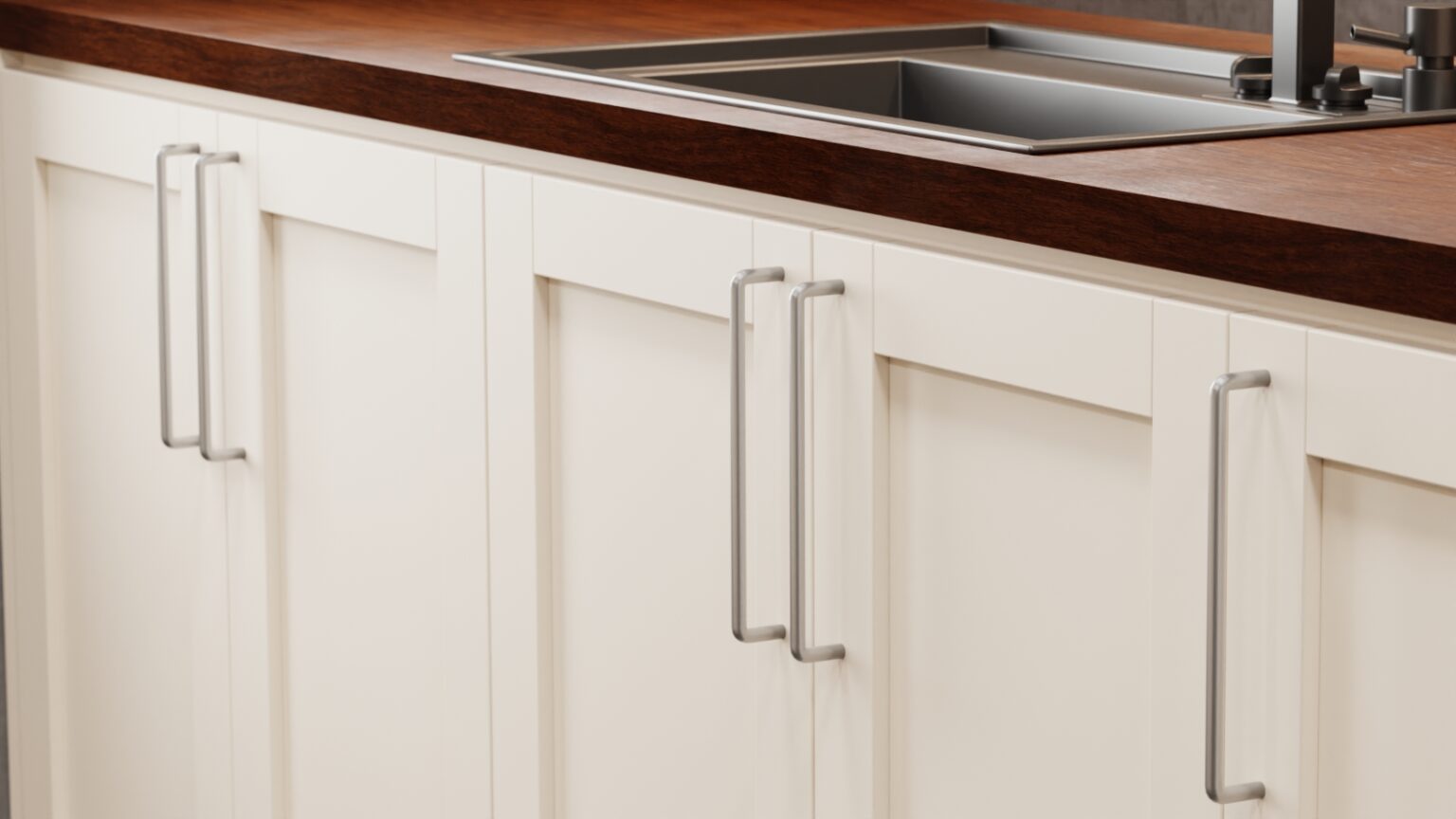

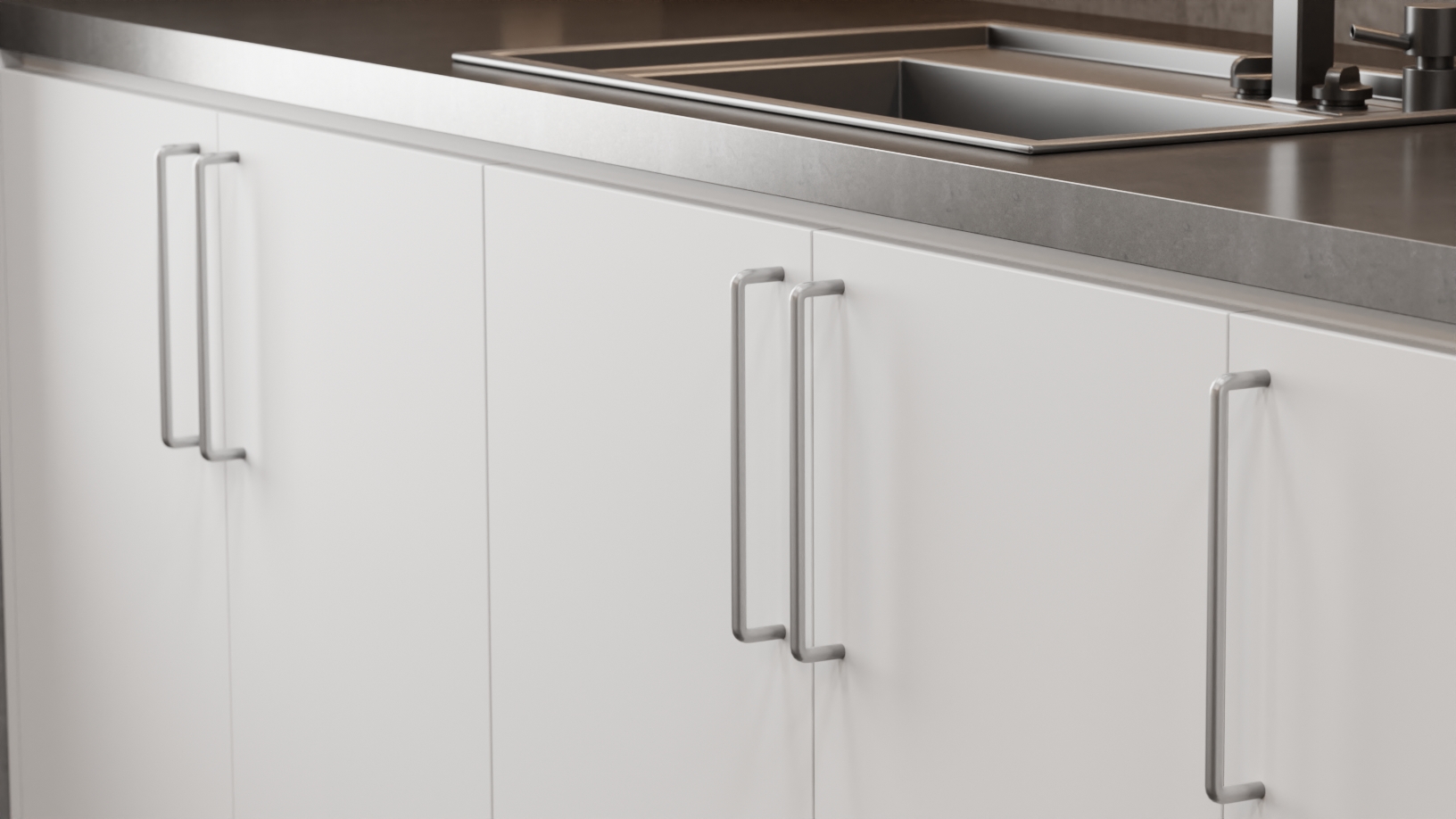

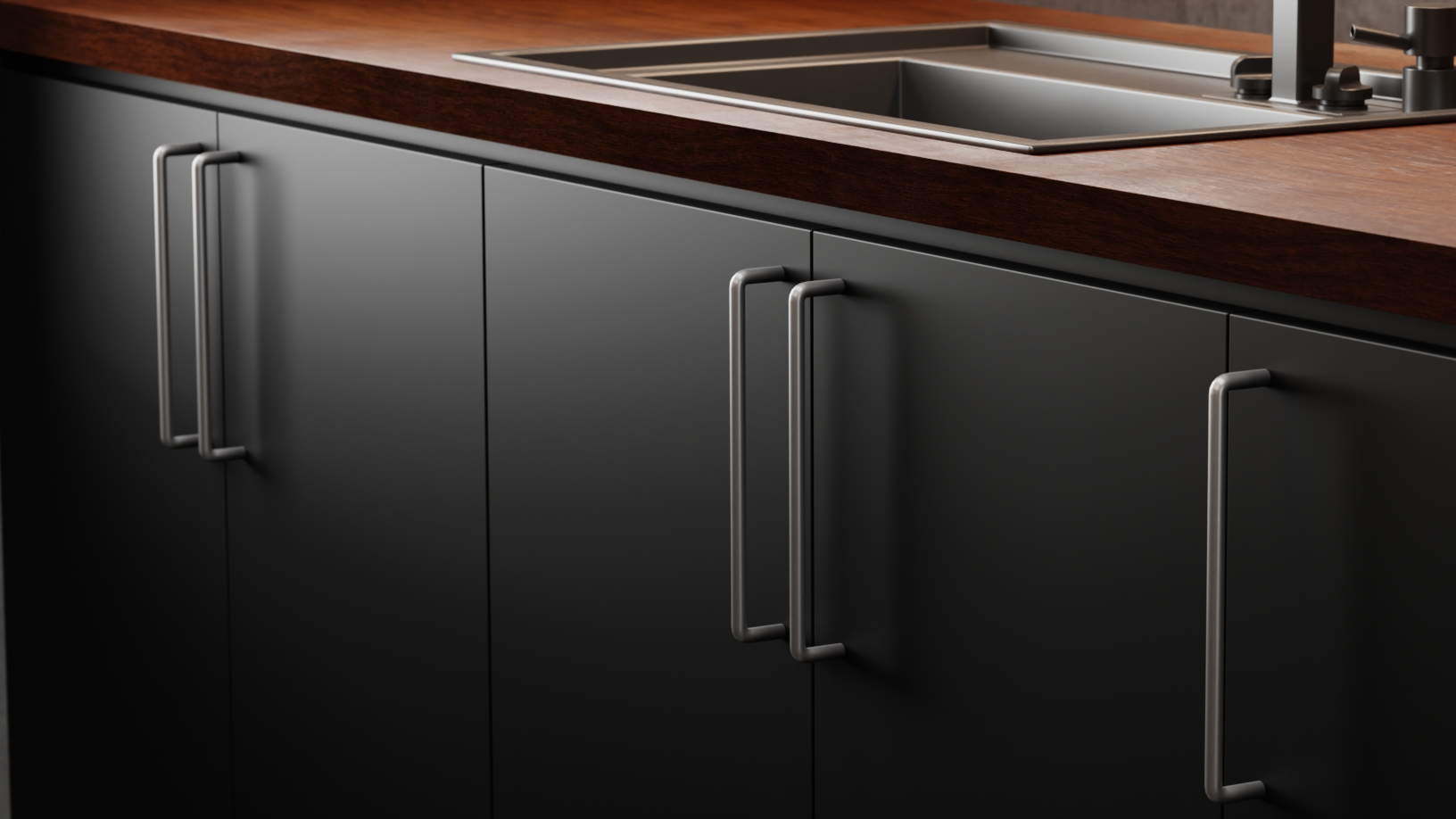

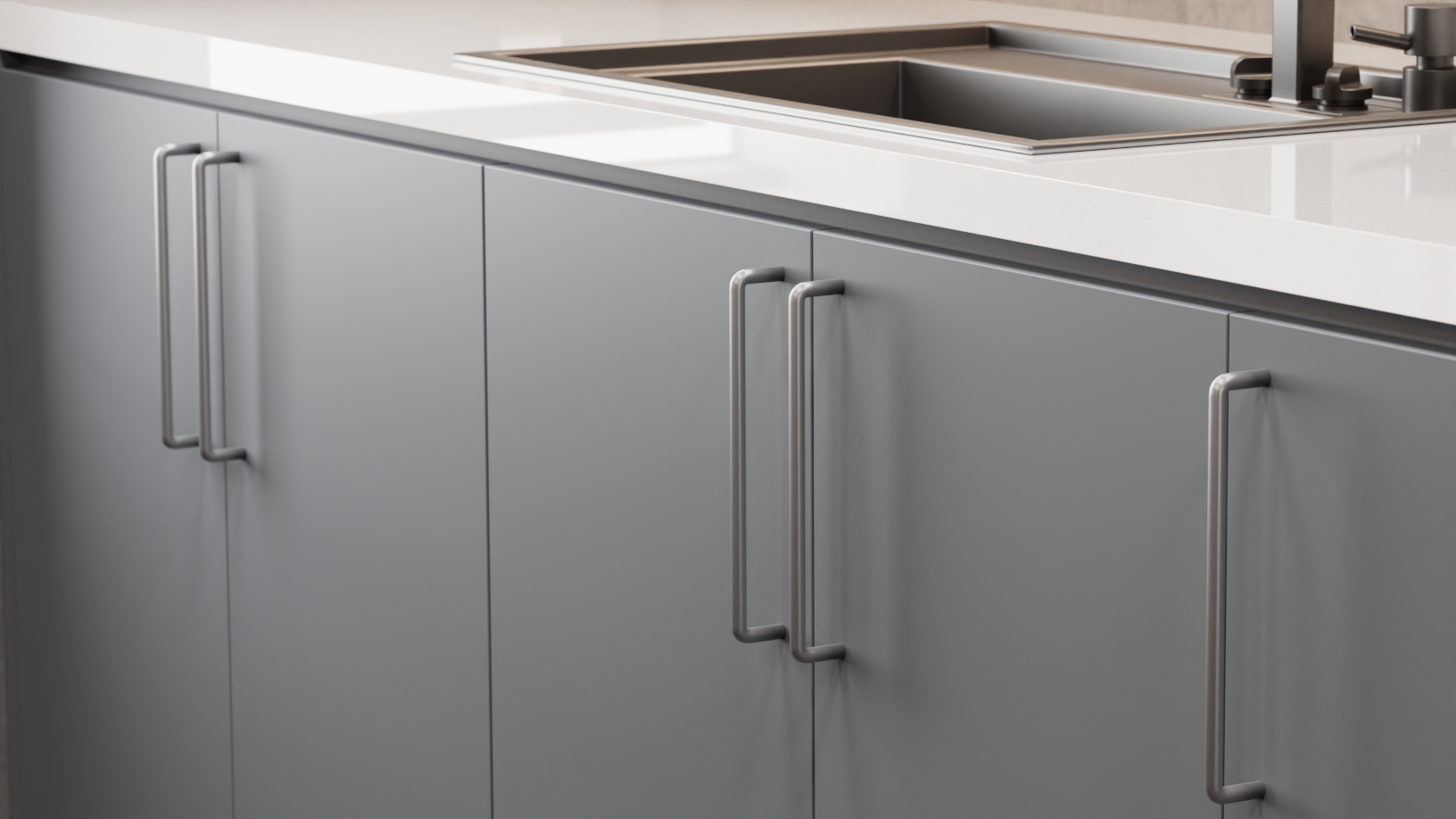

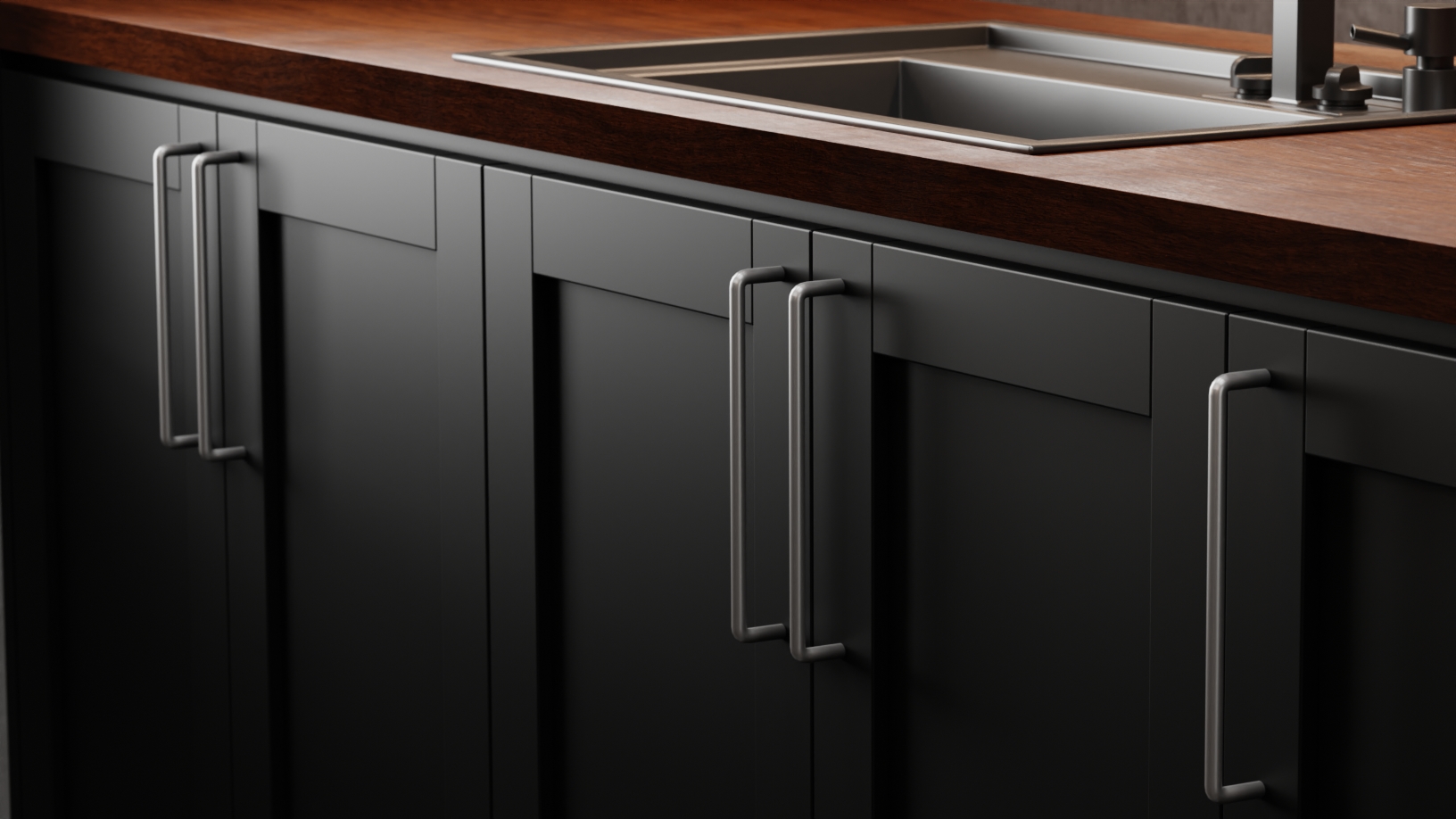

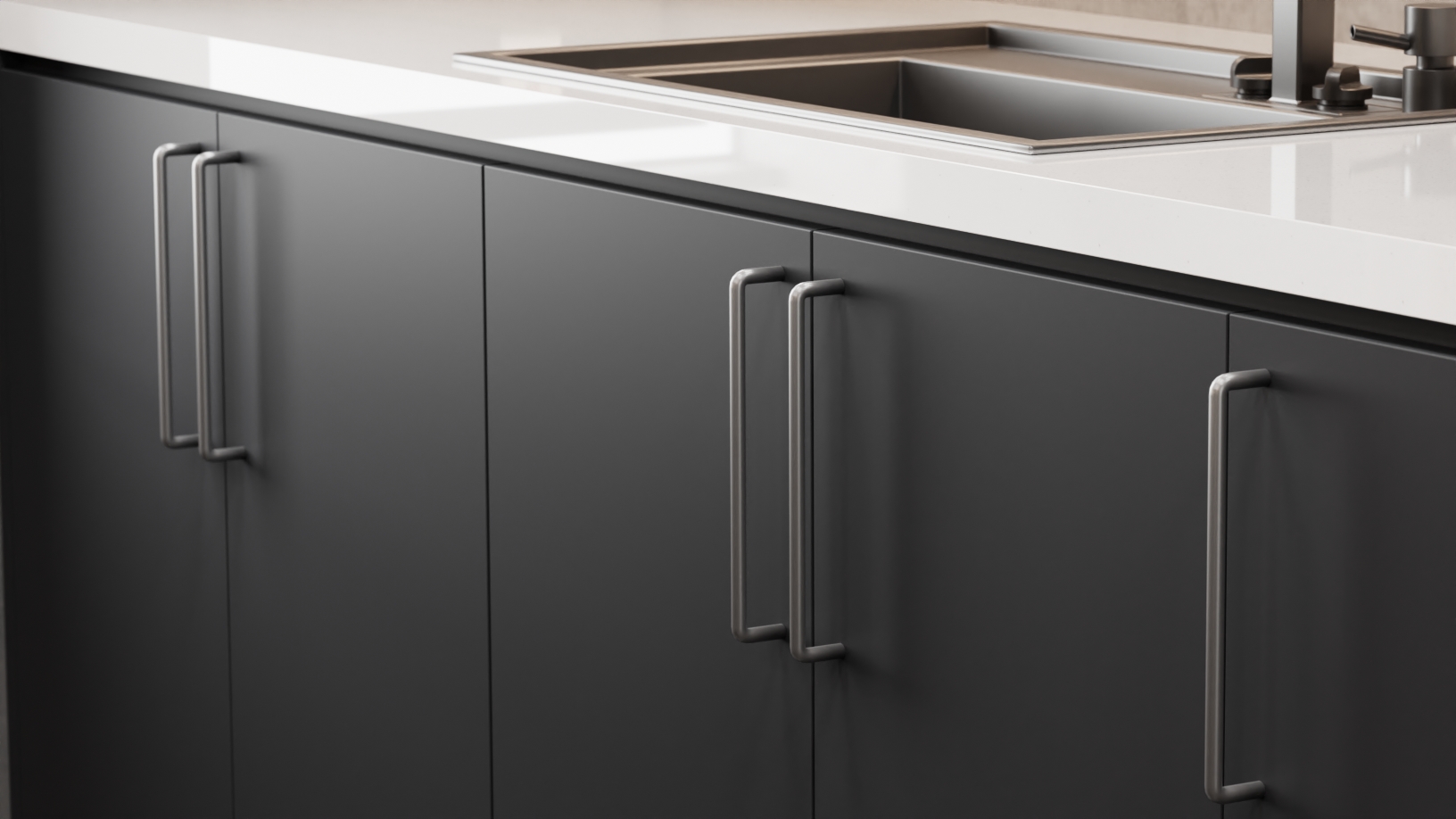

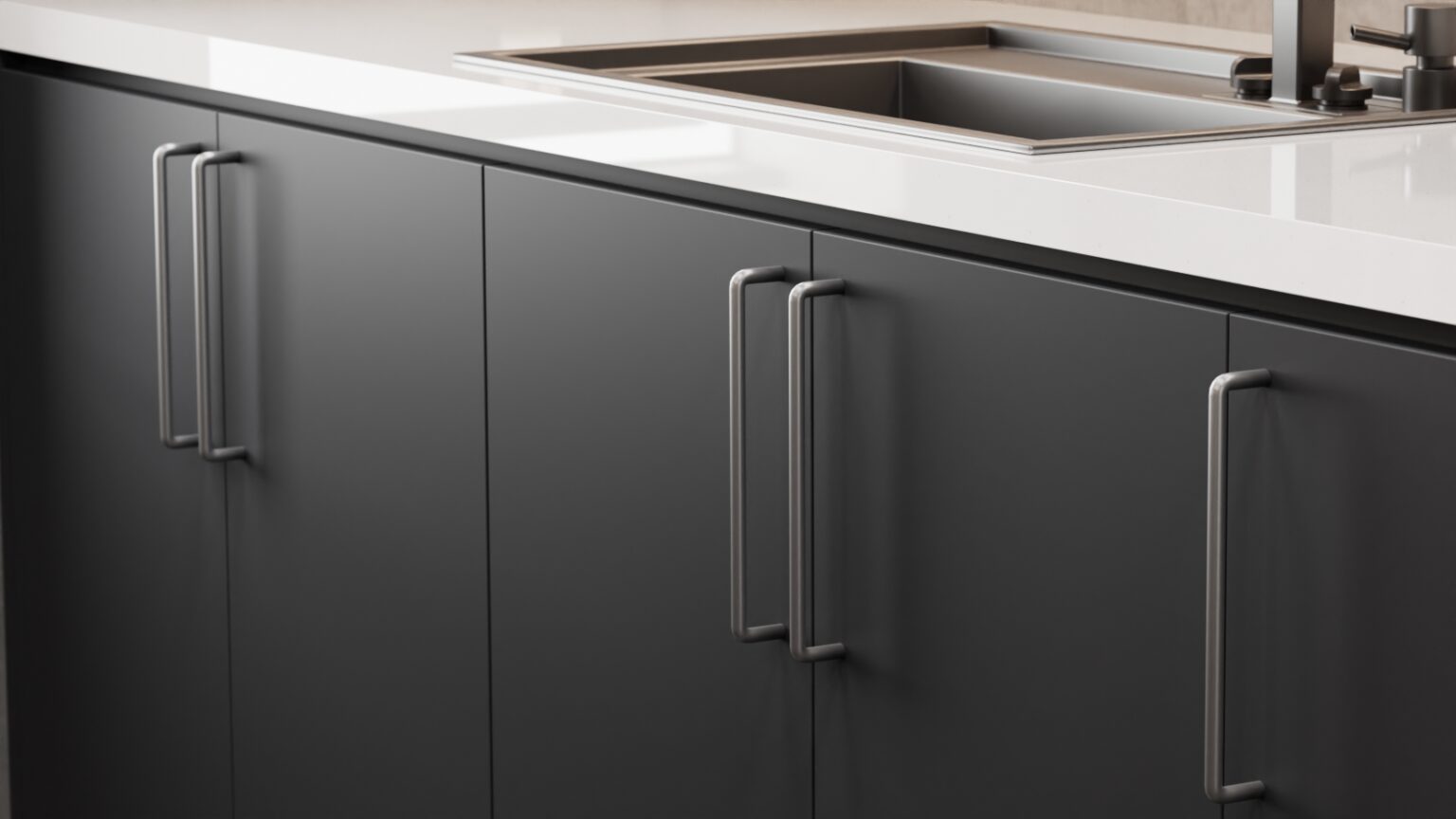

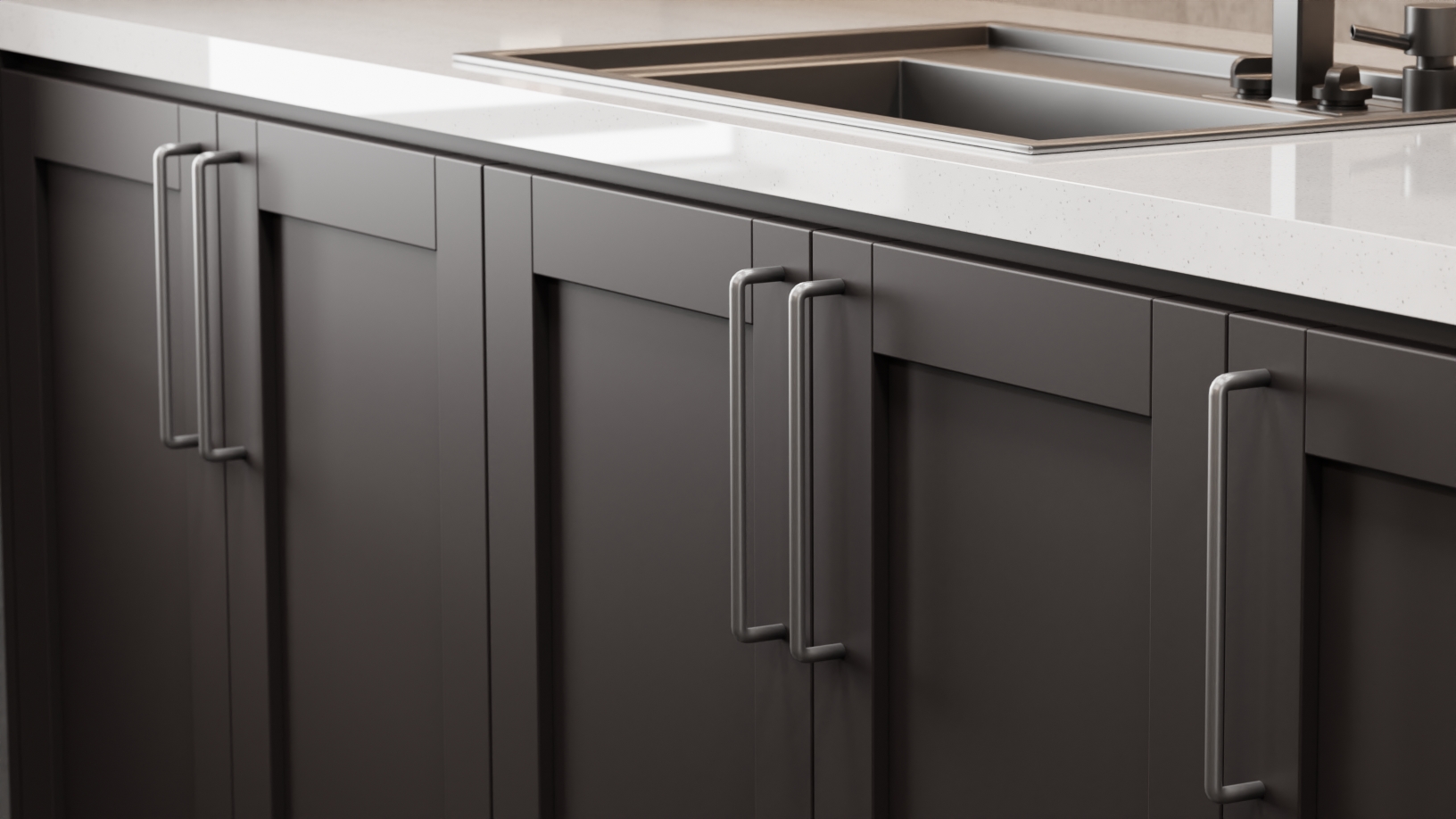

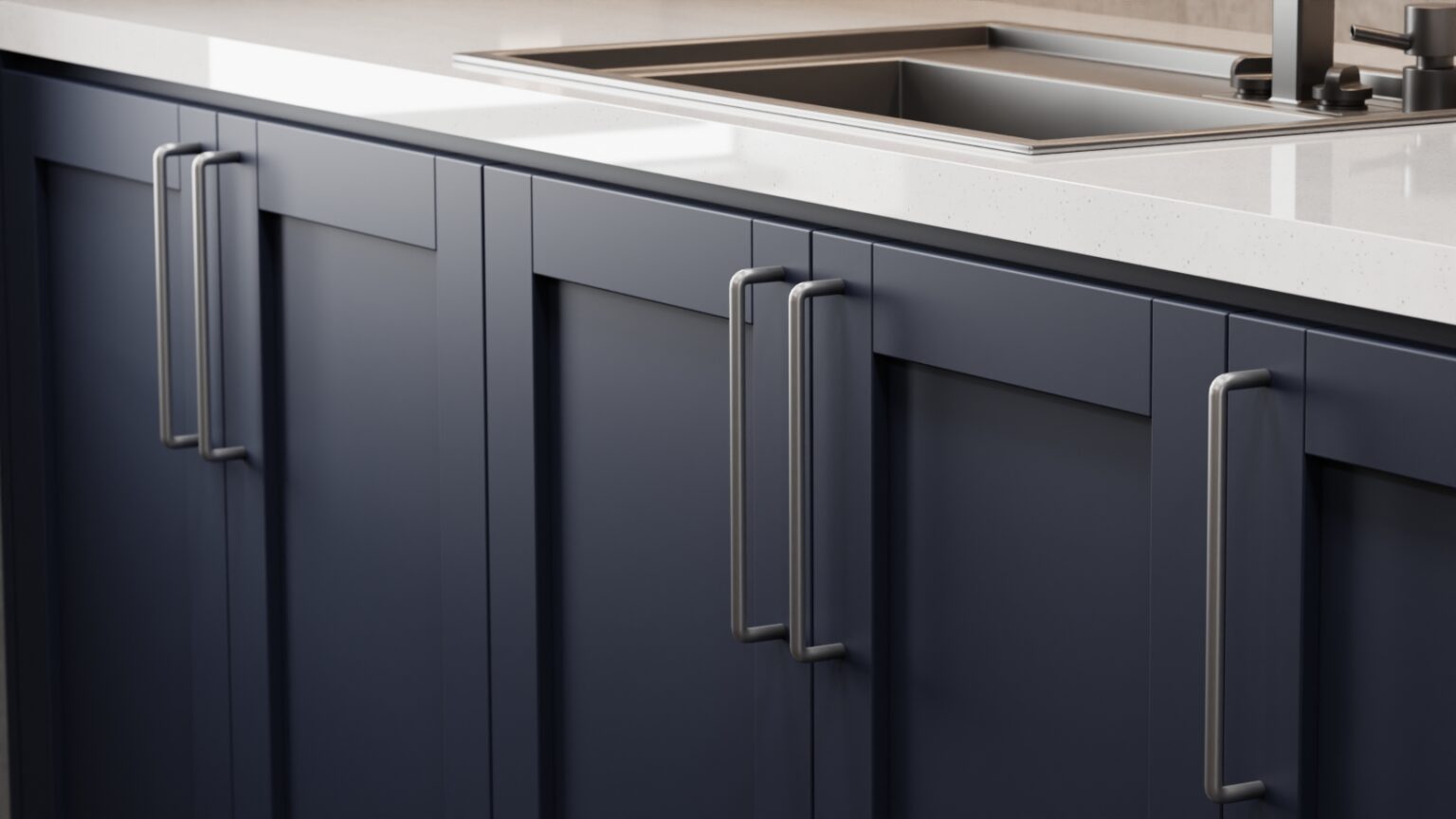

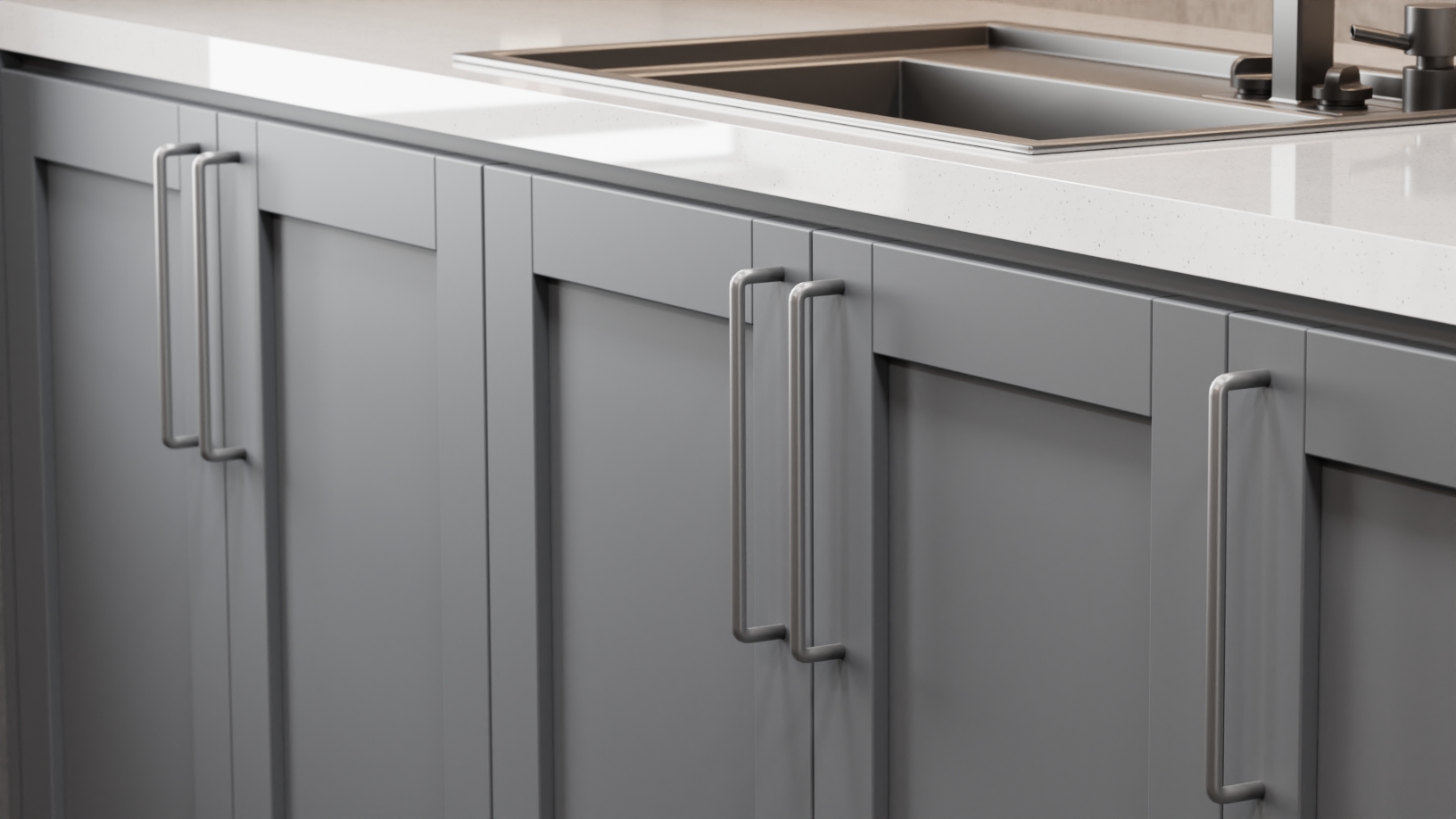

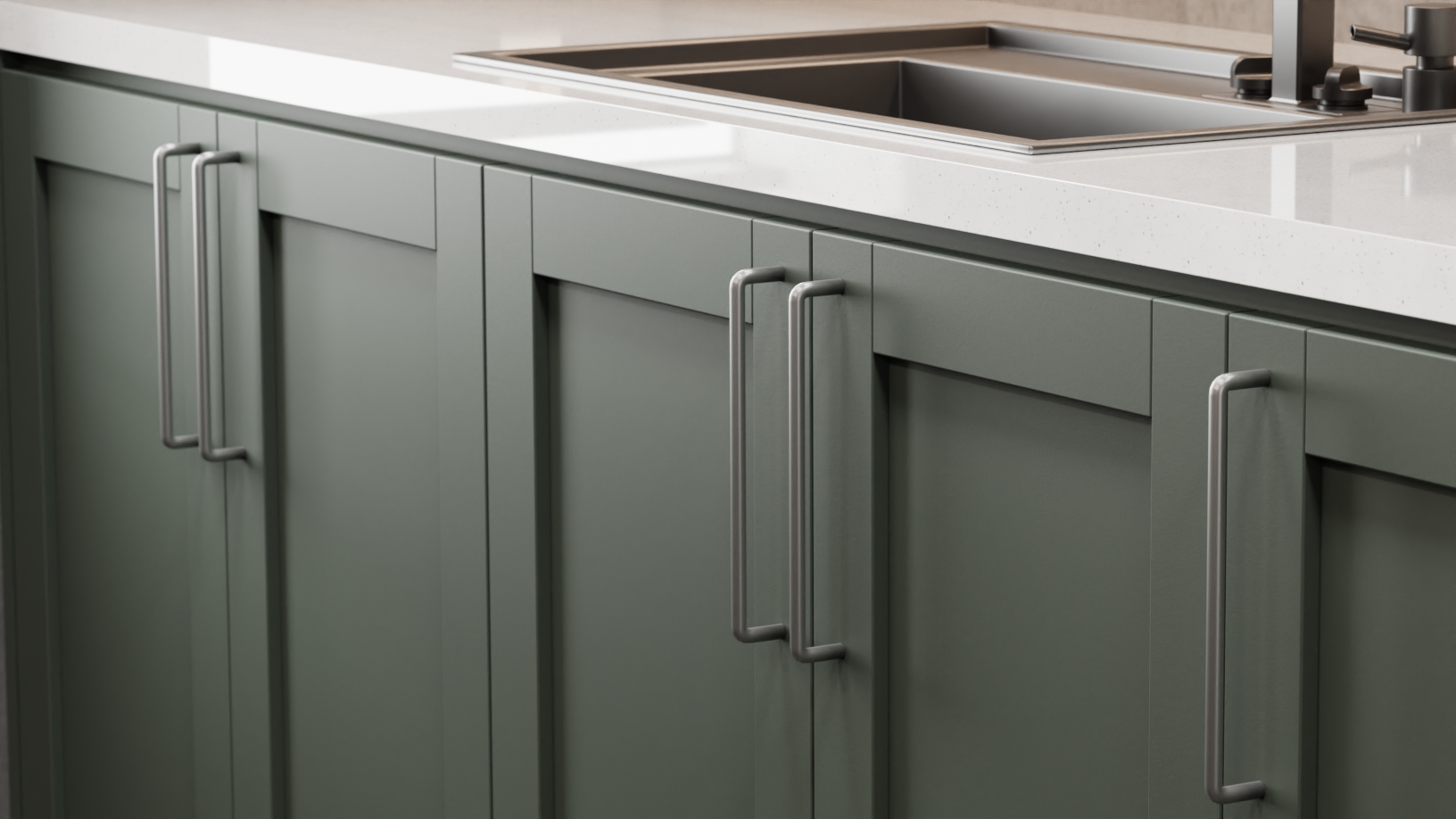

COLORS
PET (Polyethylene Terephthalate
PVC, the common material other high gloss and matte finish panels are constructed from are not as stable and environmentally friendly as PET. The plasticizers in the PVC create toxic fumes when burnt and they also migrate causing discoloration of other materials that they are in contact with. Plasticizers present in PVC can cause leaching. MIRLUX’s PET panels are safe, inert, non-toxic and chemically neutral. No off-gassing occurs during lamination of the PET roll stock to the MDF due to using a cold process with PUR (polyurethane) adhesive. Once MIRLUX is installed, the PET surface is hygienic, stain resistant and keeps its color when exposed to UV rays.
MIRLUX Components
FACE SURFACE:
PET (Polyester – Polyethylene Terephthalate) film with a 10 micron SSR (super scratch-resistant) coating. High gloss PET is co-extruded as .4 mm film that is roller laminated with PUR adhesive that results in a waterproof seal that won’t delaminate and allows MIRLUX to have the smoothest surface possible.
CORE:
Super smooth, low surface variance TSCA Title VI Certified medium-density fiberboard (MDF). Super Matte finishes also available with a plywood (VC) or particle board (PB) core.High
EDGE: Hot Air edgebanding, composed of 1.2 mm polypropylene, is applied without adhesive. During the Hot Air process, the base layer melts to bond with the substrate and fills all voids at the edges. The result is a fully encased water-resistant door. Super matte faces with matching edgebanding give the look of a painted surface without cracking or peeling. Both super matte and high gloss finishes provide easy to maintain surfaces.
BACKING options:
- Standard TFL in matching color
- Standard white TFL
- Same material as face (Matching PET)
Super Matte Specifications
| Properties | Specification | Method |
|---|---|---|
| Matte level* | 4° | Viewed at 60° |
| Mass - MR MDF TSCA Title VI | 2.8/ft2 (91lb per panel) | Viewed at 60° |
| Scratch Resistance | D.4 N (Force scale .1-10 N) | DIN EN 15186 |
| Stain Resistance | No change after 30 minutes | NEMA |
| Surface Distortion | <235° C | 455° F | NEMA |
| Bond Strength | 100% Fiber Split | |
| Backing | Color matched standard textured white TFL backing. Matching MIRLUX high gloss or matte finish available as an option |
* MIRLUX Super Matte surface rates 4° on the Surface Reflectivity Scale. A rating of 4-6° is considered the lowest gloss level achievable.
Availability Matrix
MDF

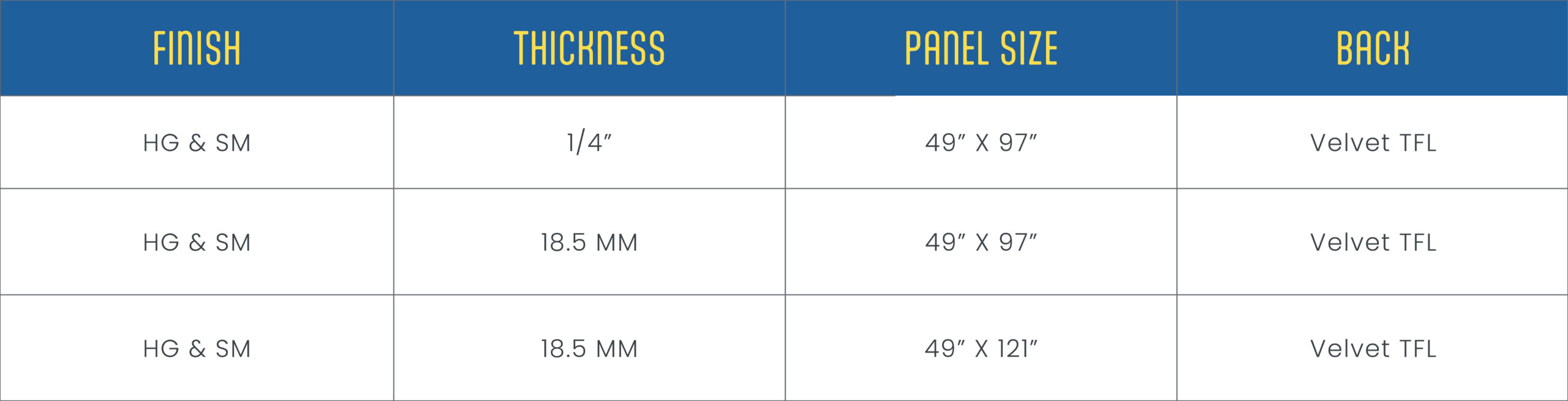

| FINISH | THICKNESS | PANEL SIZE | BACK |
|---|---|---|---|
| HG & SM | 1/4" | 49 x 97 | velvet TFL |
| HG & SM | 18.5 MM | 49 x 97 | velvet TFL |
| HG & SM | 18.5 mm | 49 x 121 | velvet TFL |
backs are complementary colored TFL
2-sided available for a price upgrade.
PB

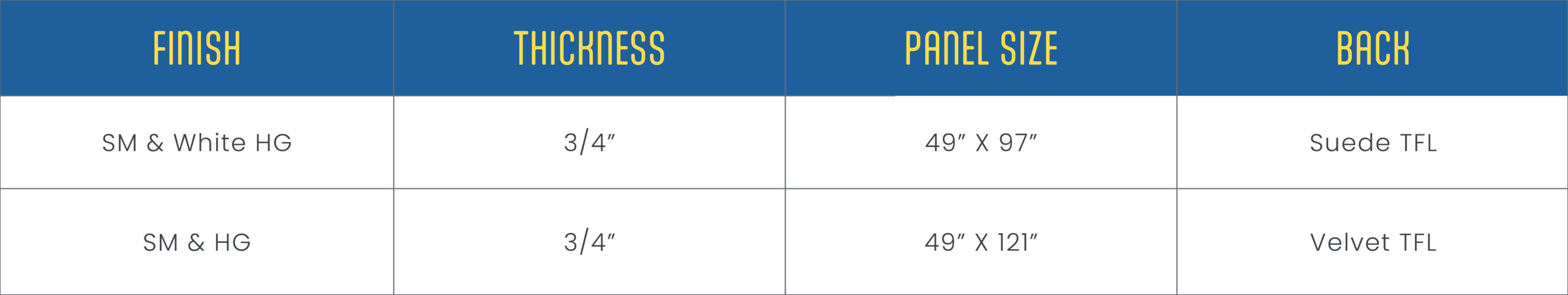

| FINISH | THICKNESS | PANEL SIZE | BACK |
|---|---|---|---|
| SM & white HG | 3/4" | 49 x 97 | suede TFL |
| SM & HG | 3/4" | 49 x 121 | velvet TFL |
backs are complementary colored or white TFL
2-sided available for a price upgrade.
PLY
| FINISH | THICKNESS | PANEL SIZE | BACK |
|---|---|---|---|
| SM | 18.6 mm | 48.5 x 96.5 | PET |
backs for plywood core are same as face.
Ordering Information
In-stock size options:
MDF core
all high gloss and super matte
- 18.5 mm x 49 x 97
- 18.5 x 49 x 121
- 1/4″ x 49 x 97
PB core
super matte finish and white high gloss only
- 3/4″ x 49 x 97
PLY core
super matte finish only
- 18.6 mm x 48.5 x 96.5
Edgebanding:
Hot Air/Laser ABS
- Finishes: High Gloss, Super Matte to match surface finish
- Thickness: 1.2 mm
- Width: 15/16″
ABS :
- Finishes: High Gloss, Super Matte to match surface finish
- Thickness: 1 mm
- Gloss width: 15/16″
- Matte widths: 15/16″ and 1 3/4″
*PROTECTIVE FILM: The finished board stock or component parts comes with a protective peel coat. Once removed this leaves no residue.
.
